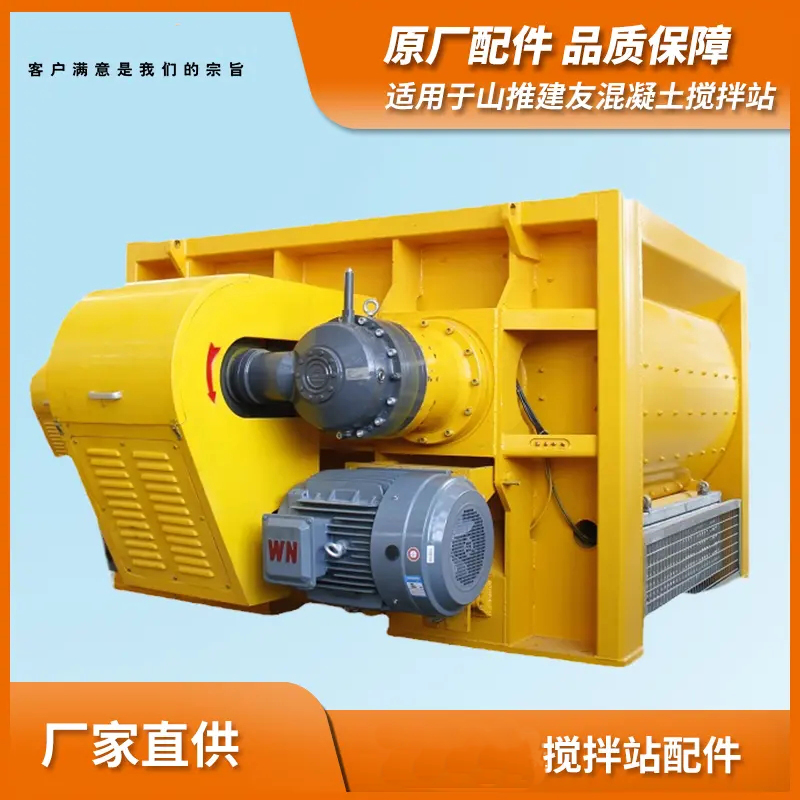

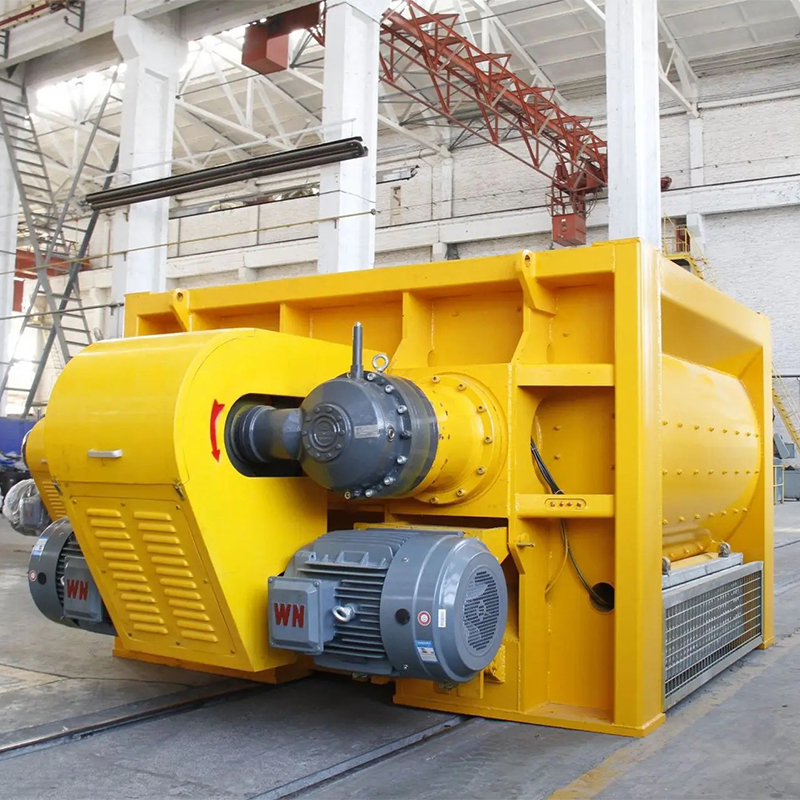

Twin Shaft Mixer
Product Feature:
1.Mixing arm are helical ribbon arrangement; adopting shalft-end seal structure with floating seal ring; mixer has high mixing efficiency and stable performance.
2.Js series concrete mixer is mainly used for production various grade concrete, it can produce hard concrete and low plastic concrete; aggregate could be gravel or pebble.
3.It is mainly used in kinds of concrete production line.
Technical Parameters
| Item Type | SjJS1000-3B | SjJS1500-3B | SjJS2000-3B | SjJS3000-3B | SjJS4000-3B | |
| Discharge capacity（L） | 1000 | 1500 | 2000 | 3000 | 4000 | |
| Charge capacity（L） | 1600 | 2400 | 3200 | 4800 | 6400 | |
| Working period（S） | ≤80 | ≤80 | ≤80 | ≤86 | ≤90 | |
| Max. aggregate(mm) | Gravel | 60 | 60 | 60 | 60 | 60 |
| Pebble | 80 | 80 | 80 | 80 | 80 | |
| Total weight（kg） | 5150 | 5400 | 8600 | 10150 | 13500 | |
| Mixing power（kw） | 2X18.5 | 2X30 | 2X37 | 2X55 | 2X75 | |
