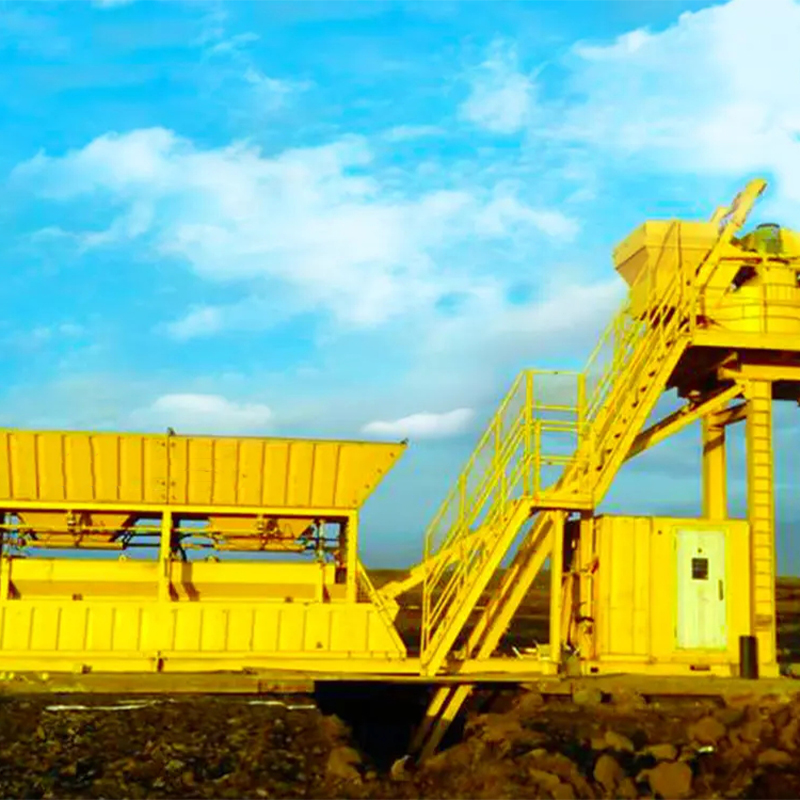

Foundation Free Concrete Batching Plant
Features
1. Foundation free structure, the equipment can be installed for production after the work site is leveled and hardened. Not only reduce the foundation construction costs, but also shorten the installation cycle.
2.The modular design of the product makes it convenient and quick to disassemble and transport.
3. Overall compact structure, less land occupation.
Specification
|
Mode |
SjHZN025F |
SjHZN040F |
SjHZN050F |
SjHZN075F |
SjHZS050F |
SjHZS075F |
SjHZS100F |
SjHZS150F |
||
| Theoretical productivity m³/h | 25 | 40 | 50 | 75 | 50 | 75 | 100 | 150 | ||
| Mixer | Mode | JN500 | JN750 | JN1000 | JN1500 | JS1000 | JS1500 | JS2000 | JS3000 | |
| Driving power（Kw） | 22 | 30 | 45 | 55 | 2X18.5 | 2X30 | 2X37 | 2X55 | ||
| Discharging capacity（L） | 500 | 750 | 1000 | 1500 | 1000 | 1500 | 2000 | 3000 | ||
| Max. aggregate size Gravle/ Pebble mm） | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ||
| Batching bin | Volume m³ | 4X4 | 4X4 | 3X8 | 3X8 | 3X8 | 3X8 | 4X20 | 4X20 | |
| Hoist motor power（kW） | 5.5 | 7.5 | 18.5 | 22 | 18.5 | 22 | 30 | 45 | ||
| Weighing range and measurement accuracy | Aggregate kg | 1500±2% | 1500±2% | 2500±2% | 3000±2% | 2500±2% | 3000±2% | 4X（2000±2%） | 4X（3000±2%） | |
| Cement kg | 300±1% | 500±1% | 500±1% | 800±1% | 500±1% | 800±1% | 1000±1% | 1500±1% | ||
| Fly ash kg | --------- | -------- | 150±1% | 200±1% | 150±1% | 200±1% | 400±1% | 600±1% | ||
| kg | 150±1% | 200±1% | 200±1% | 300±1% | 200±1% | 300±1% | 400±1% | 600±1% | ||
| Additive kg | 20±1% | 20±1% | 20±1% | 30±1% | 20±1% | 30±1% | 40±1% | 60±1% | ||
| Discharging height m | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.2 | 4.2 | ||
| Total power（Kw） | 40 | 50 | 130 | 155 | 122 | 150 | 216 | 305 | ||
Related products
-
Concrete Drum Mixer
Concrete drum mixer, composed of mixing unit, feeding unit, water supply unit, frame and electric control unit, has novel and reliable structure, featuring high productivity, good mixing quality, light weight, attractive appearance and easy maintenance.
-
SELF-LOADING CONCRETE MIXER TRUCK
-self-loading mixer truck -Concrete Mixing Truck Self-loading mixer truck is a specialized means of transportation that can process raw materials (cement, sand, stone, water, etc.) into concrete by itself, and maintain the uniformity and quality stability of concrete during transportation. FOB Price: US $0.5 – 9,999 / Piece Min.Order Quantity: 100 Piece/Pieces Supply Ability: 10000 Piece/Pieces per Month
-
Dry Mortar Mixing Plant
We design the best equipment layout according to users requirement.
-

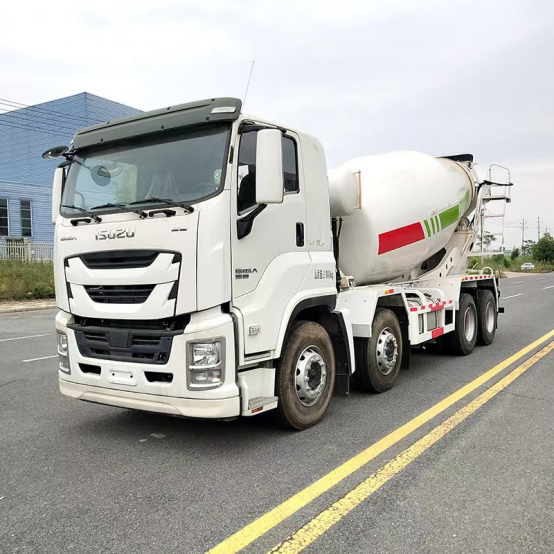

Concrete Truck Mixer 8×4
