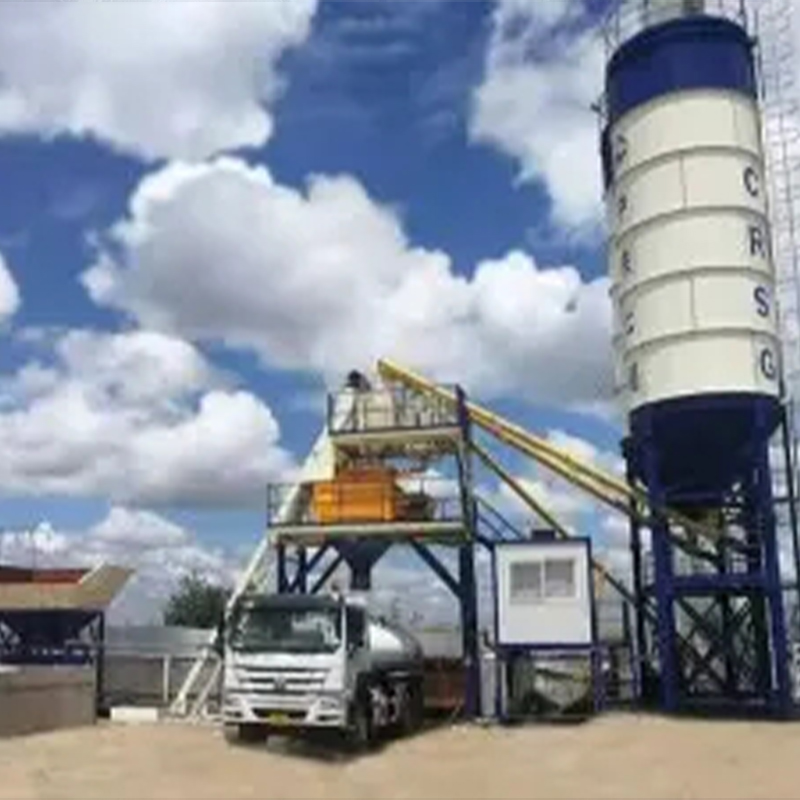

Skip Hoist Concrete Batching Plant
Features
The plant is composed of batching system, weighing system, mixing system, electrical control system, pneumatic control system and etc. Three aggregates, one powders, one liquid additive and water can be automatically scaled and mixed by the plant. Aggregates were loaded to aggregate bin by front loader. Powder is conveyed from silo into weighing scale by screw conveyor .Water and liquid additive are pumped to the scales. All the weighing systems are electronic scales.
The plant is fully automatic controlled by computer with production management and data printing software.
1. Skip hoist loading type, less land occupation, simple structure, fast transfer, convenient operation and maintenance;
2. Powder weighing scales adopt pull rod balance structure to ensure high measurement accuracy and strong anti-interference ability.
3. The key components of the electronic control system and air control system adopt imported brands which is safe and reliable.
4. With anti-winding time protection, upper working limit self-detection function.
Specification
|
Mode |
SjHZS025E |
SjHZS040E |
SjHZS050E |
SjHZS075E |
||
| Theoretical productivity m³/h | 25 | 40 | 50 | 75 | ||
| Mixer | Mode | JS500 | JS750 | JS1000 | JS1500 | |
| Driving power（Kw) | 18.5 | 30 | 2X18.5 | 2X30 | ||
| Discharging capacity（L） | 500 | 750 | 1000 | 1500 | ||
| Max aggregate sizeGravel/Pebble mm） | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ||
| Batching bin | Volume m³ | 4 | 4 | 8 | 8 | |
| (kW) Hoist motor power | 5.5 | 7.5 | 18.5 | 22 | ||
| Weighing range and measurement accuracy | Aggregate kg | 1500±2% | 1500±2% | 2500±2% | 3000±2% | |
| Cement kg | 300±1% | 500±1% | 500±1% | 800±1% | ||
| Fly ash kg | —— | —— | 150±1% | 200±1% | ||
| Water kg | 150±1% | 200±1% | 200±1% | 300±1% | ||
| Additive kg | 20±1% | 20±1% | 20±1% | 30±1% | ||
| Discharging height m | 4 | 4.1 | 4.2 | 4.2 | ||
| Total power kW | 57 | 70 | 105 | 130 | ||
