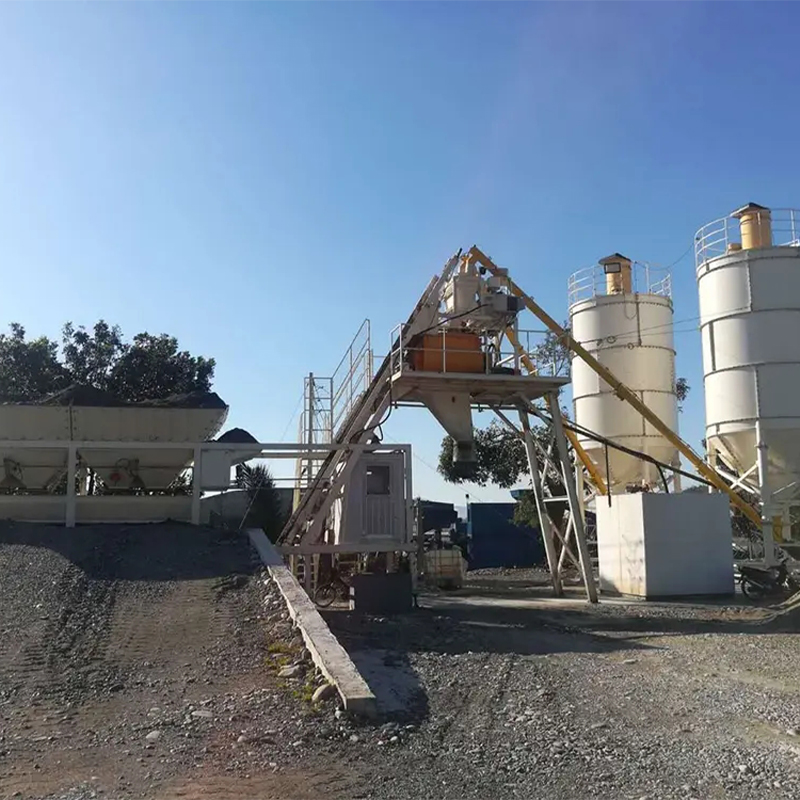

Road Base Material Mixing Plant

Short Description:

1.Concrete mixer adopts lining-plate-free mixing technology, so as to avoid wearing to the mixing blade and lining plate once and for all, making it easy for maintenance. 2.All materials are weighed up in electronic scale, which is controlled by variable frequency converter, featuring high weighing


Product Detail

Product Feature:

1.Concrete mixer adopts lining-plate-free mixing technology, so as to avoid wearing to the mixing blade and lining plate once and for all, making it easy for maintenance.
2.All materials are weighed up in electronic scale, which is controlled by variable frequency converter, featuring high weighing accuracy.

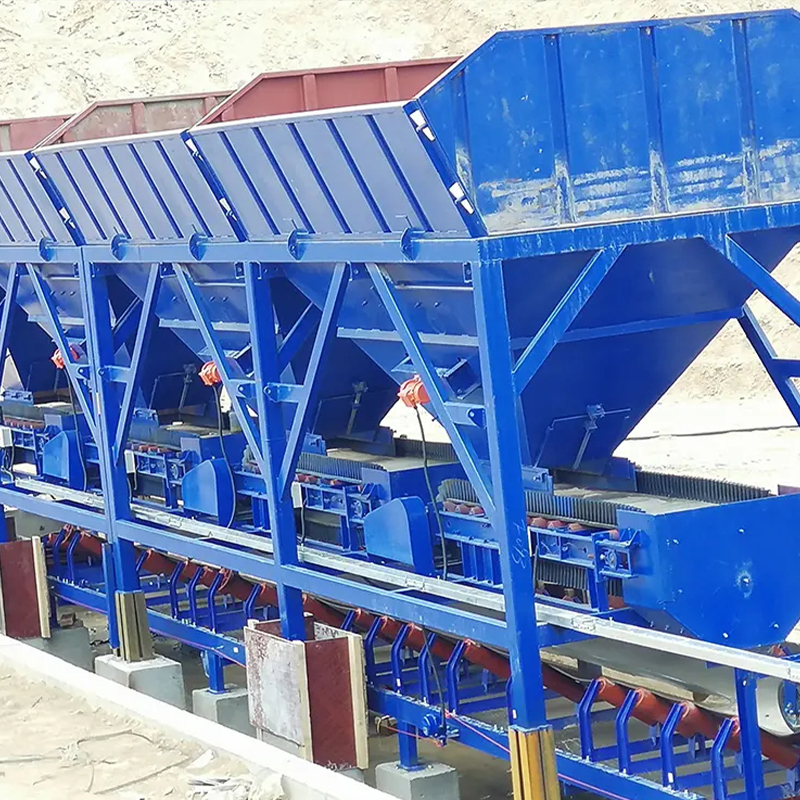

3.Adopting advanced centralized aggregate batching control system, so that batching accuracy and work efficiency of the whole plant can both be improved.
4.Modular structure, easy installation and rapid plant transfer.
5.Product purpose: Adapts to roadbed material pavement of all-grade roads, urban road, playground, wharf, etc.

Technical parameters

Model SjWBZ300 SjWBZ400 SjWBZ500 SjWBZ600 SjWBZ700 SjWBZ800
Rated capacity(t/h) 300 400 500 600 700 800

Mixer

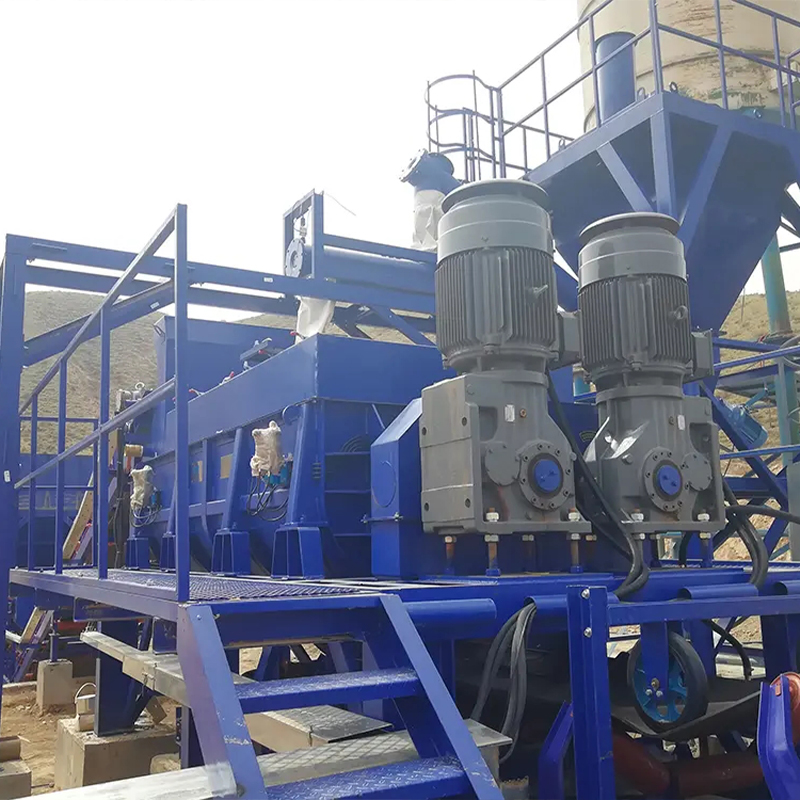

Mixer rate power(kW) 2X22 2X22 2X30 2X37 2X37 2X45
Aggregate size(mm) ≤50 ≤50 ≤50 ≤50 ≤50 ≤50

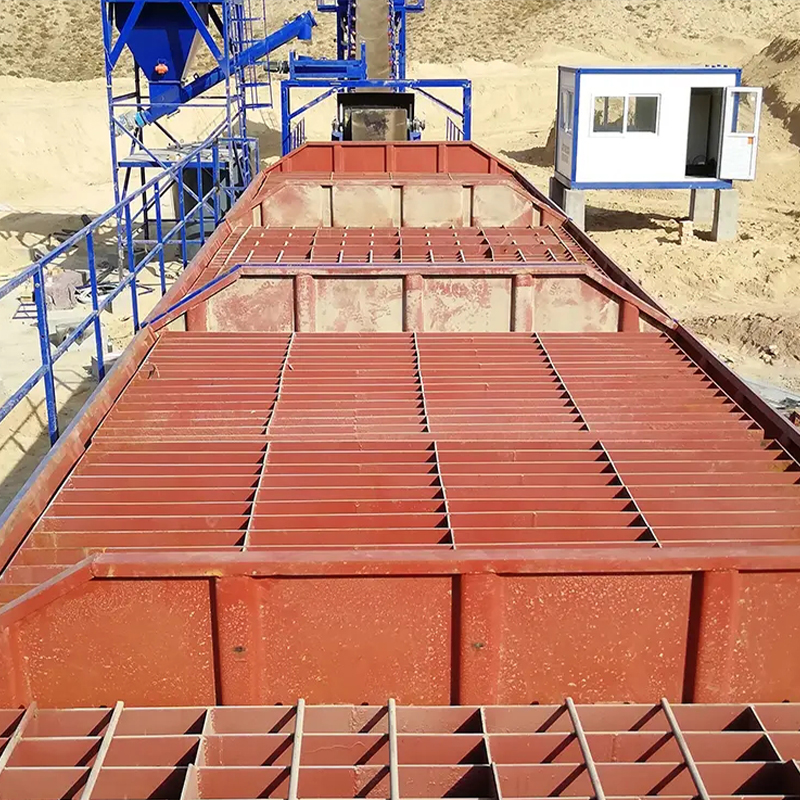

Aggregate Bin Capacity (m³) 4X12 4X12 4X12 5X12 5X12 5X15
Belt conveyance (t/h) 300 400 500 600 700 800

Weighing accuracy

Aggregate ±2% ±2% ±2% ±2% ±2% ±2%
Cement ±1% ±1% ±1% ±1% ±1% ±1%
Water ±1% ±1% ±1% ±1% ±1% ±1%
Total power(kW) 125 125 149 166 166 198
Discharge height(m) 3.6 3.6 3.6 3.6 3.6 3.6

All specification is subject to modification.

Product Components

dav
ozdfov
sdr

  • Previous:
  • Next:

  • Write your message here and send it to us

    Related products

    • SjHZS180G G Series Enviroment Friendly Type

      SjHZS180G G Series Enviroment Friendly Type

      SjHZS180-5G Concrete mixing plant adopts modular structure, which has the characteristics of high efficiency, energy saving and environmental protection.

    • Concrete Truck Mixer 4×2

      Concrete Truck Mixer 4×2

      Zibo jixiang has been developing and producing concrete truck mixer since the 1980s. It has accumulated rich experience in design, manufacturing and after-sales service.

    • Concrete Truck Mixer

      Concrete Truck Mixer

      Zibo jixiang has been developing and producing concrete truck mixer since the 1980s. It has accumulated rich experience in design, manufacturing and after-sales service.

    • Foundation Free Concrete Batching Plant

      Foundation Free Concrete Batching Plant

      Foundation free structure, the equipment can be installed for production after the work site is leveled and hardened. Not only reduce the foundation construction costs, but also shorten the installation cycle

    • Concrete Bag Breaker

      Concrete Bag Breaker

      Cement bag breaker is the dedicated unpack device for bagged power.

    • [Copy] Sand Separator

      [Copy] Sand Separator

      Adopting the combinative technology of drum separation and spiral screening and separation,and proceeding the sandstone separation;with simply structure,well separating effect,low using cost and good benefit of environmental protection.

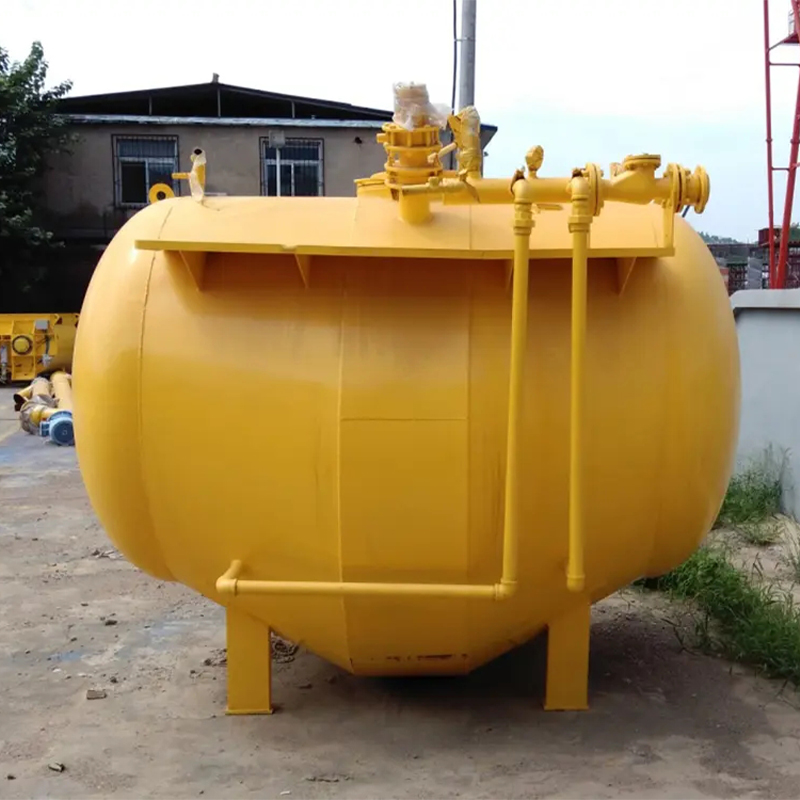

    • Cement Feeder

      Cement Feeder

      Horizontal feeder is a kind of pneumatic conveyor with advanced structure, it has a high efficiency for unloading by using fluidization and pressure feed technology and unique fluidized bed.

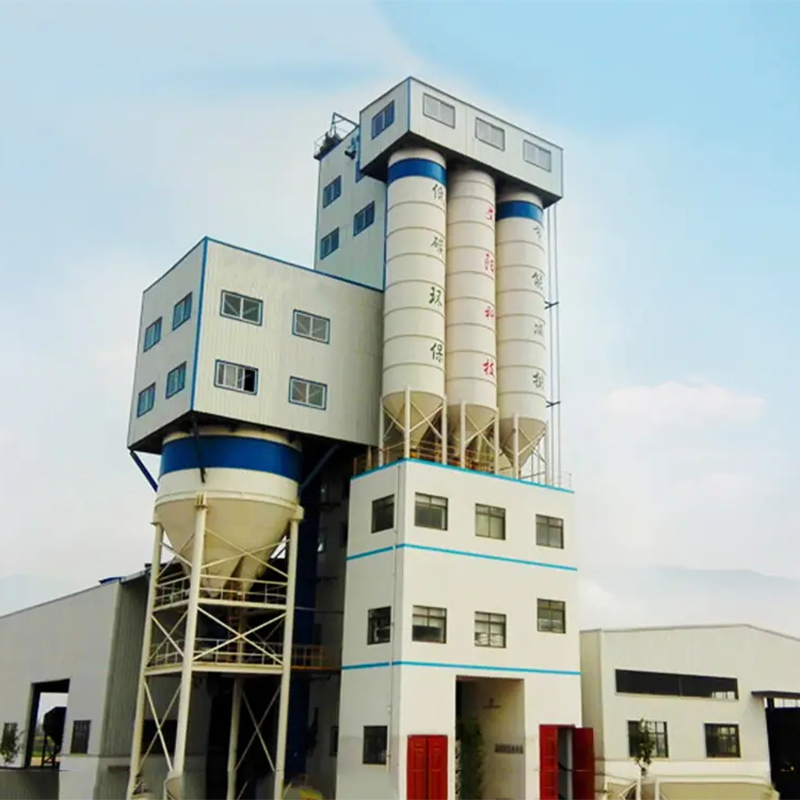

    • SjGZD060-3G Station Type Dry Motar Batching Plant

      SjGZD060-3G Station Type Dry Motar Batching Plant

      SjGZD060-3G station type dry mortar mixing equipment is a kind of equipment designed and developed by our company according to the similar products abroad and combined with the actual situation in China.It is suitable for mixing ordinary dry mortar and special dry mortar.

    • Asphalt Batching Plant SjLBZ160/180-5B

      Asphalt Batching Plant SjLBZ160/180-5B

      -Our asphalt mixing plants are designed in modular structure. -Вy adopting “inertial + back-blowing” type bag flter, our asphalt mixing plant is highly eco-friendly.

    • Twin Shaft Mixer

      Twin Shaft Mixer

      Mixing arm are helical ribbon arrangement; adopting shalft-end seal structure with floating seal ring; mixer has high mixing efficiency and stable performance.

    • Asphalt Batching Plant SjLBZ080/120-5B

      Asphalt Batching Plant SjLBZ080/120-5B

      -Our asphalt mixing plants are designed in modular structure. -Вy adopting “inertial + back-blowing” type bag flter, our asphalt mixing plant is highly eco-friendly.

    • Asphalt Batching Plant SjLBZ240/3205B

      Asphalt Batching Plant SjLBZ240/3205B

      -Our asphalt mixing plants are designed in modular structure. -Вy adopting “inertial + back-blowing” type bag flter, our asphalt mixing plant is highly eco-friendly.

    • High End Mixer

      High End Mixer

      We design the best equipment layout according to users requirement.

    • Concrete Drum Mixer

      Concrete Drum Mixer

      Concrete drum mixer, composed of mixing unit, feeding unit, water supply unit, frame and electric control unit, has novel and reliable structure, featuring high productivity, good mixing quality, light weight, attractive appearance and easy maintenance.

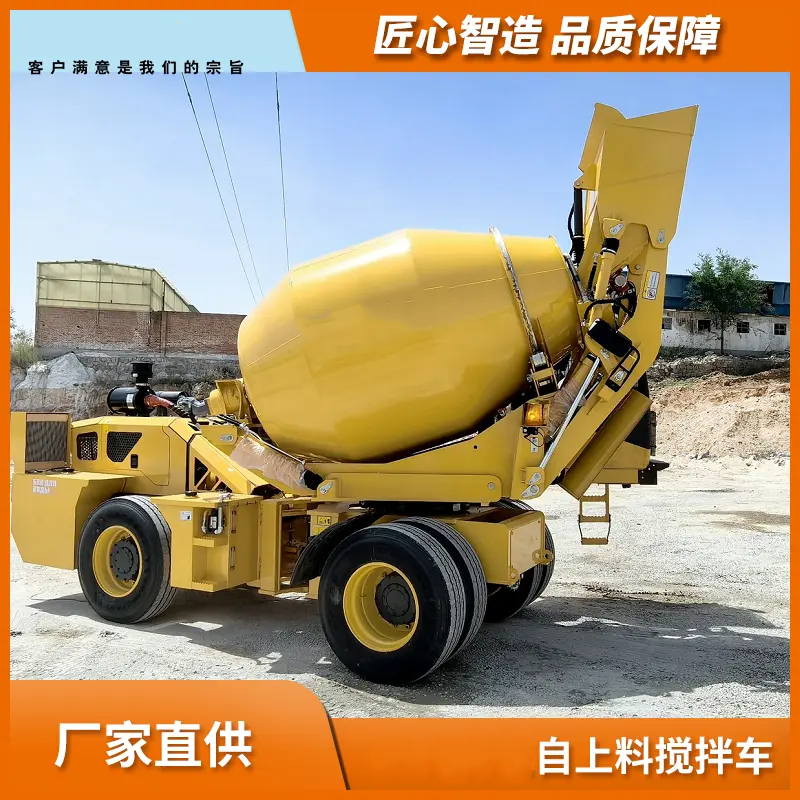

    • SELF-LOADING CONCRETE MIXER TRUCK
