PC Equipment
Product Feature:
1. Using vertical shaft planetary-mode mixing engine for bigger greater mixing intensity and better uniformity concrete and especially suited for mixing dry-hard concrete.
2. Meeting the requirement of high precision measure technology for high-speed rail; Ensure all material proportion and improve greatly the quality of concrete.
3. Designing discharging height based on the demand, for meeting the requirements of swap vehicle and guide rail arrangement.
4. Could equip humidity and temperature measuring device in the agitator, to realize humidity and temperature measuring and controlling and ensure the quality of concrete.
5. Advanced production control software which is using Siemens industrial personal computer as a platform has function including formula reserve, automatic compensation of drop in elevation, automatic compensation of moisture content, and information management, etc."

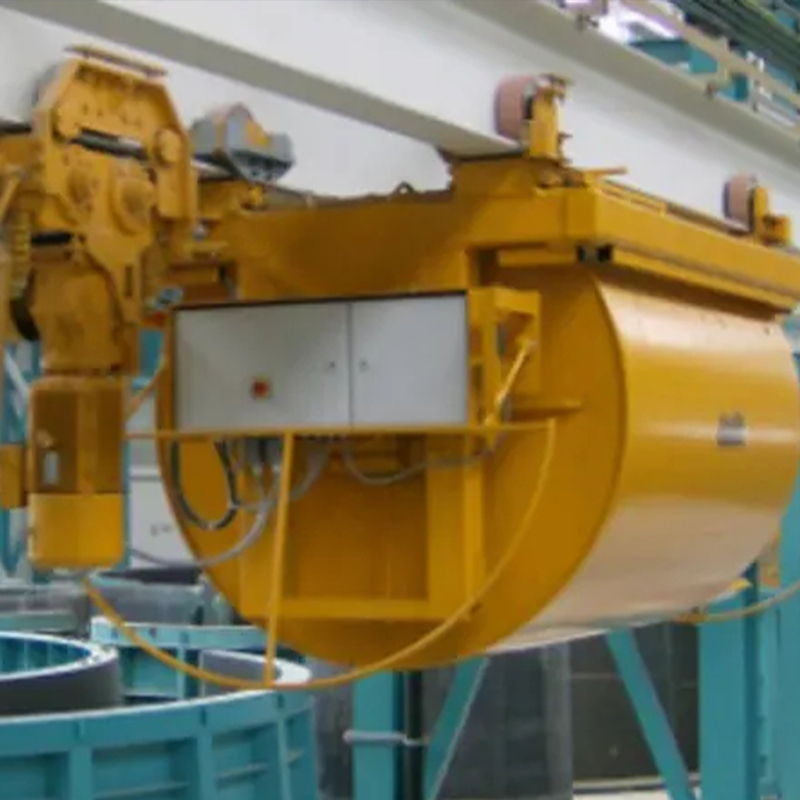

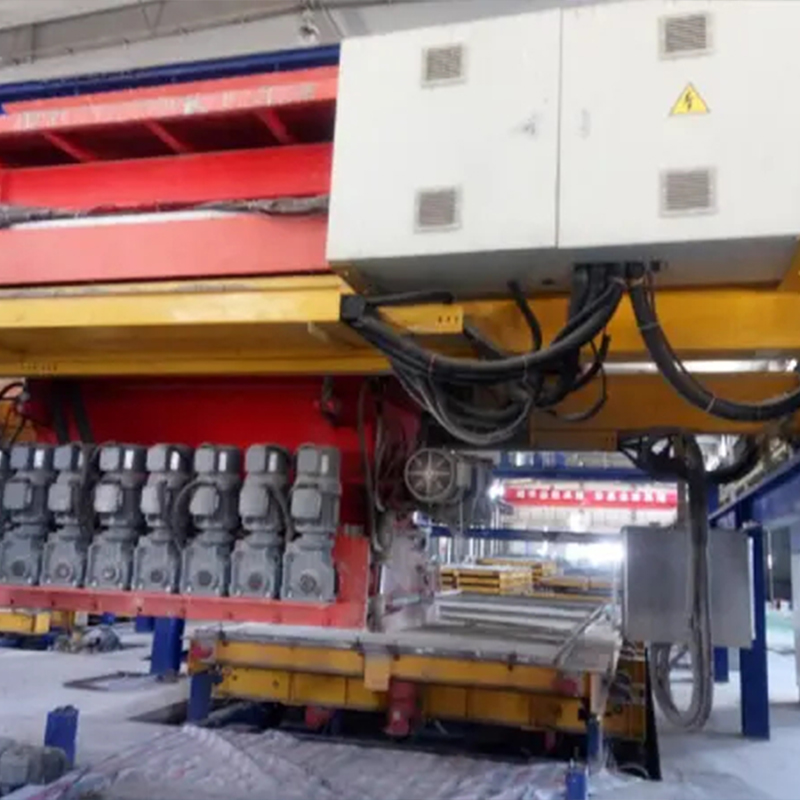

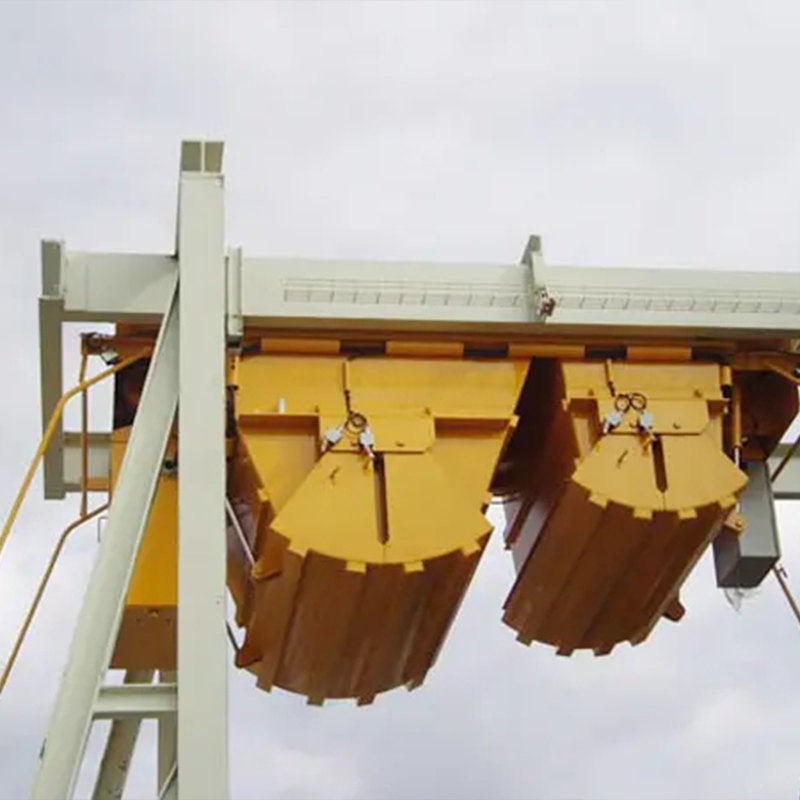

Product Components
Technical Parameters
| Model | PCJN60B | PCJN90B | PCJN120B | PCJN180B | PCJN75S | PCJN100S | PCJN150S | |
|---|---|---|---|---|---|---|---|---|
| Theoretic productivity(m³/h) | 60 | 90 | 120 | 180 | 75 | 100 | 150 | |
| Mixer | Model | JN1000 | JN1500 | JN2000 | JN3000 | JN1500 | JN2000 | JN3000 |
| Power(KW) | 45 | 55 | 90 | 110 | 55 | 90 | 110 | |
| Discharge capacity(m³) | 1 | 1.5 | 2 | 3 | 1.5 | 2 | 3 | |
| Maximum aggregate size | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |
| (gravel/pebble)mm | ||||||||
| Weight capacity and measuring precision | Aggregate(kg) | 3X(1000±2%) | 3X(1500±2%) | 4X(2000±2%) | 4X(3000±2%) | 3X(1500±2%) | 4X(2000±2%) | 4X(3000±2%) |
| Cement (kg) | 500±1% | 800±1% | 1000±1% | 1500±1% | 800±1% | 1000±1% | 1500±1% | |
| Fly ash (kg) | 200±1% | 300±1% | 400±1% | 600±1% | 300±1% | 400±1% | 600±1% | |
| Water (kg) | 200±1% | 300±1% | 400±1% | 600±1% | 300±1% | 400±1% | 600±1% | |
| Additive(kg) | 20±1% | 30±1% | 40±1% | 60±1% | 30±1% | 40±1% | 60±1% | |
| Batcher bin capacity (m³) | 3X12 | 3X12 | 4X20 | 4X20 | 3X12 | 4X20 | 4X20 | |
