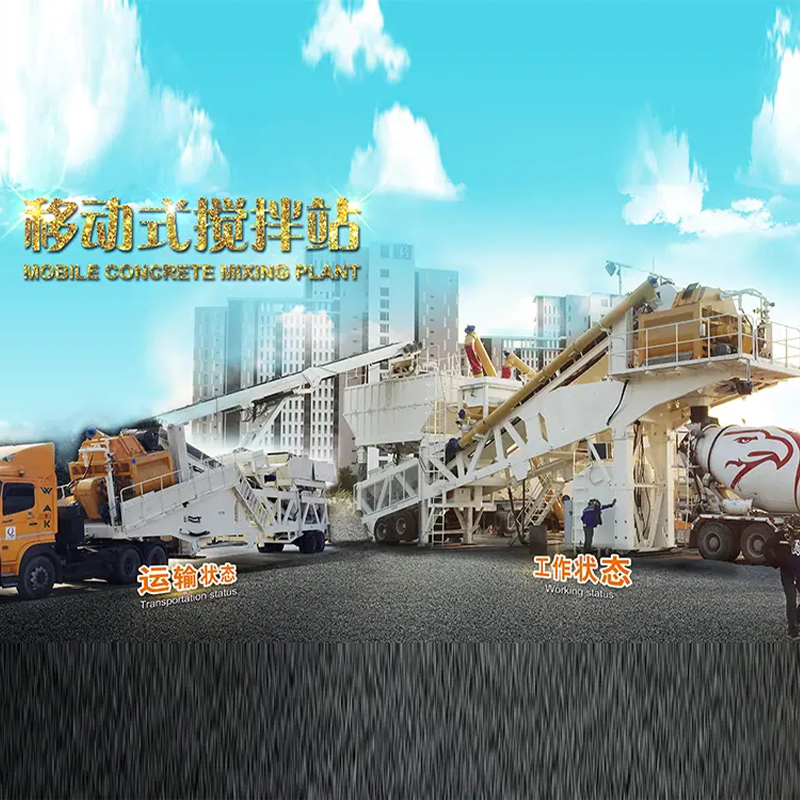

Mobile Concrete Batching Plant
Features
1.Convenient assembly and disassembly, high mobility of transition, convenient and fast, and perfect work site adaptability.
2.Compact and reasonable structure, high modularity design;
3.The operation is clear and the performance is stable.
4.Less land occupation, high productivity;
5.The electrical system and gas system are equipped with high-end and high reliability.
The mobile concrete mixing plant is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and automatic control system of the concrete mixing plant with a trailer unit;
The mobile concrete mixing plant is the same as all the operation processes, operation methods and maintenance of the fixed automatic concrete mixing plant; At the same time, it has unique characteristics of flexible movement, quick and easy disassembly and assembly, and simple storage management;
it is the best optimized machine for mobile construction of public railways, bridges, ports, hydropower and other projects.
Specification
|
Mode |
SjHZS050Y |
SjHZS075Y |
|||
| Theoretical productivity m³/h | 50 | 75 | |||
| Mixer | Mode | JS1000 | JS1500 | ||
| Driving power（Kw） | 2X18.5 | 2X30 | |||
| Discharging capacity（L） | 1000 | 1500 | |||
| Max. aggregate size（ Gravel/ Pebble mm） | ≤60/80 | ≤60/80 | |||
| Batching bin | Volume m³ | 4X8 | 4X8 | ||
| Belt conveyor capacity t/h | 300 | 300 | |||
| Weighing range and measurement accuracy | Aggregate kg | 2000±2% | 3000±2% | ||
| Cement kg | 500±1% | 800±1% | |||
| Water kg | 200±1% | 300±1% | |||
| Additive kg | 20±1% | 30±1% | |||
| Discharging height m | 4 | 4 | |||
| Total power kw | 68 | 94 | |||
