High-Speed Railway Dedicated Concrete Batching Plant
Features
1.Modular design, convenient to assemble and disassemble, fast transfer, flexible layout;

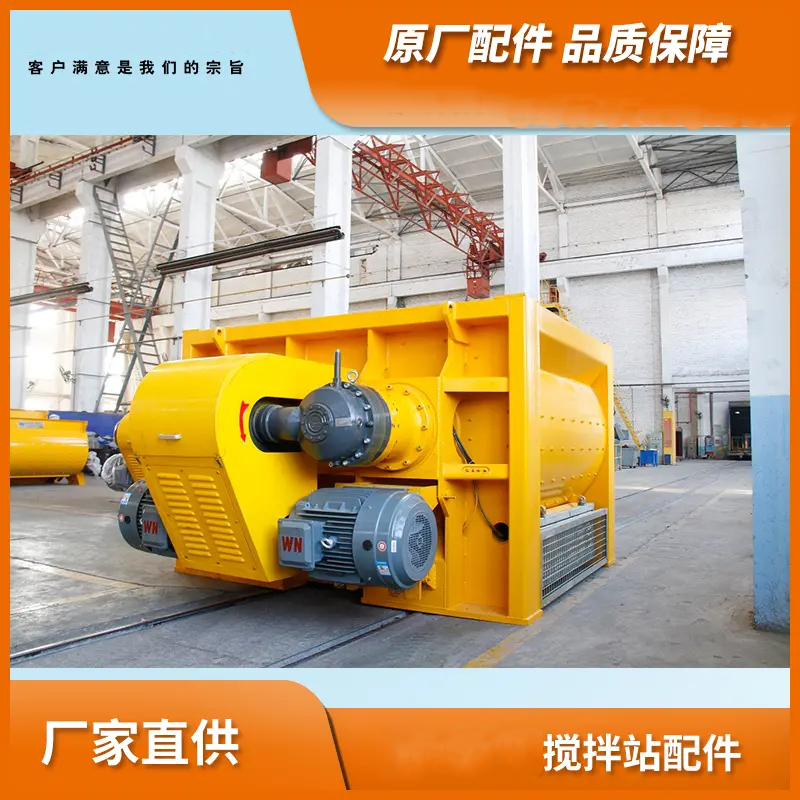

2.Adopting high-efficiency mixer,high production efficiency, supporting multiple types fo feeding technology, suitable for various concrete mixing needs, the lining boards and blades adopt alloy wear-resistant material, with long service life.
3.The aggregate measurement system achieves high-precision measurement of aggregate by optimizing the discharge door structure, improving the vibration form of the vibrator, and increasing the closing speed of the discharge door;
4. Powder measurement By installing a precise measurement screw in the lower part of the main spiral, a coarse and fine powder scale can be realized;
5. There is a liquid storage bag on the top of the water/additive weighing scale so that it realizes the coarse-fine measurement.
6. With Siemens industrial control computer as the platform, the production control software adopts the most advanced automatic scale compensation and deduction scale technology in China to ensure that the measurement accuracy of various raw materials meets the technical requirements of high-speed railway construction;
7. Fully-sealed arc discharging gate of the aggregate storage bin to meet the high-speed railway secondary material feeding and mixing process.
Specification
|
Mode |
SjHZS090R |
SjHZS120R |
SjHZS180R |
SjHZS240R |
SjHZS270R |
|||
| Theoretical productivity m³/h | 90 | 120 | 180 | 240 | 270 | |||
| Mixer | Mode | JS1500 | JS2000 | JS3000 | JS4000 | JS4500 | ||
| Driving power（Kw） | 2X30 | 2X37 | 2X55 | 2X75 | 2X75 | |||
| Discharging capacity（L） | 1500 | 2000 | 3000 | 4000 | 4500 | |||
| Max. aggregate size
Gravel/Pebble mm） |
≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |||
| Batching bin | Volume m³ | 4X12 | 4X20 | 4X20 | 4X30 | 4X30 | ||
| Belt conveyor capacity t/h | 300 | 400 | 600 | 800 | 800 | |||
| Weighing range and measurement accuracy | Aggregate kg | 4X（1500±2%） | 4X（2000±2%） | 4X（3000±2%） | 4X（4000±2%） | 4X（4500±2%） | ||
| Cement kg | 800±1% | 1000±1% | 1500±1% | 2000±1% | 2500±1% | |||
| Flyash kg | 200±1% | 400±1% | 600±1% | 800±1% | 900±1% | |||
| Ore powder kg | 200±1% | 300±1% | 400±1% | 500±1% | 600±1% | |||
| Water kg | 300±1% | 400±1% | 600±1% | 800±1% | 900±1% | |||
| Additive kg | 30±1% | 40±1% | 60±1% | 80±1% | 90±1% | |||
| Discharging height m | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | |||
| Total power | 150 | 200 | 250 | 300 | 300 | |||
Related products
-
![[Copy] Sand Separator](https://www.zbjxmachinery.com/wp-content/uploads/1-115.jpg)
[Copy] Sand Separator
Adopting the combinative technology of drum separation and spiral screening and separation,and proceeding the sandstone separation;with simply structure,well separating effect,low using cost and good benefit of environmental protection.
-
Concrete Truck Mixer 8×4
Zibo jixiang has been developing and producing concrete truck mixer since the 1980s. It has accumulated rich experience in design, manufacturing and after-sales service.
-
D Series Cement Silo Top Type SjHZS120D
Zibo jixiang has been developing and producing concrete truck mixer since the 1980s. It has accumulated rich experience in design, manufacturing and after-sales service.
-
Mobile Concrete Batching Plant
Convenient assembly and disassembly, high mobility of transition, convenient and fast, and perfect work site adaptability.
-
SELF-LOADING CONCRETE MIXER TRUCK
-self-loading mixer truck -Concrete Mixing Truck Self-loading mixer truck is a specialized means of transportation that can process raw materials (cement, sand, stone, water, etc.) into concrete by itself, and maintain the uniformity and quality stability of concrete during transportation. FOB Price: US $0.5 – 9,999 / Piece Min.Order Quantity: 100 Piece/Pieces Supply Ability: 10000 Piece/Pieces per Month
-
Concrete Truck Mixer
Zibo jixiang has been developing and producing concrete truck mixer since the 1980s. It has accumulated rich experience in design, manufacturing and after-sales service.
-
Concrete Drum Mixer
Concrete drum mixer, composed of mixing unit, feeding unit, water supply unit, frame and electric control unit, has novel and reliable structure, featuring high productivity, good mixing quality, light weight, attractive appearance and easy maintenance.
-
Concrete Truck Mixer 4×2
Zibo jixiang has been developing and producing concrete truck mixer since the 1980s. It has accumulated rich experience in design, manufacturing and after-sales service.
-
Sand Separator
Adopting the combinative technology of drum separation and spiral screening and separation,and proceeding the sandstone separation;with simply structure,well separating effect,low using cost and good benefit of environmental protection.
-
SjGTD060-3G Tower Type Dry Mortar Batching Plant
Sjgtd060-3g dry mortar batching equipment adopts tower structure, with large productivity, energy saving and environmental protection, stable and reliable characteristics, mainly used for mixing ordinary dry mortar.
-
Foundation Free Concrete Batching Plant
Foundation free structure, the equipment can be installed for production after the work site is leveled and hardened. Not only reduce the foundation construction costs, but also shorten the installation cycle
-
SZN50 Foundation Free Wet Mortar Mixing Plant
Applicable mix to all types of wet mortar mixing plant…
-
Asphalt Batching Plant SjLBZ160/180-5B
-Our asphalt mixing plants are designed in modular structure. -Вy adopting “inertial + back-blowing” type bag flter, our asphalt mixing plant is highly eco-friendly.
-

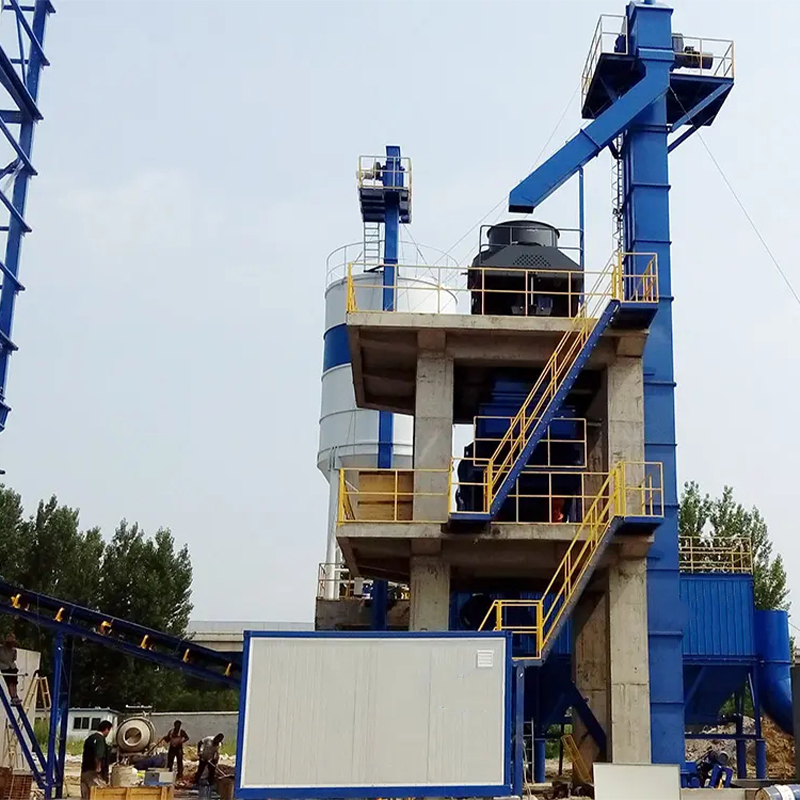

Tower Type Sand-Making Equipment
