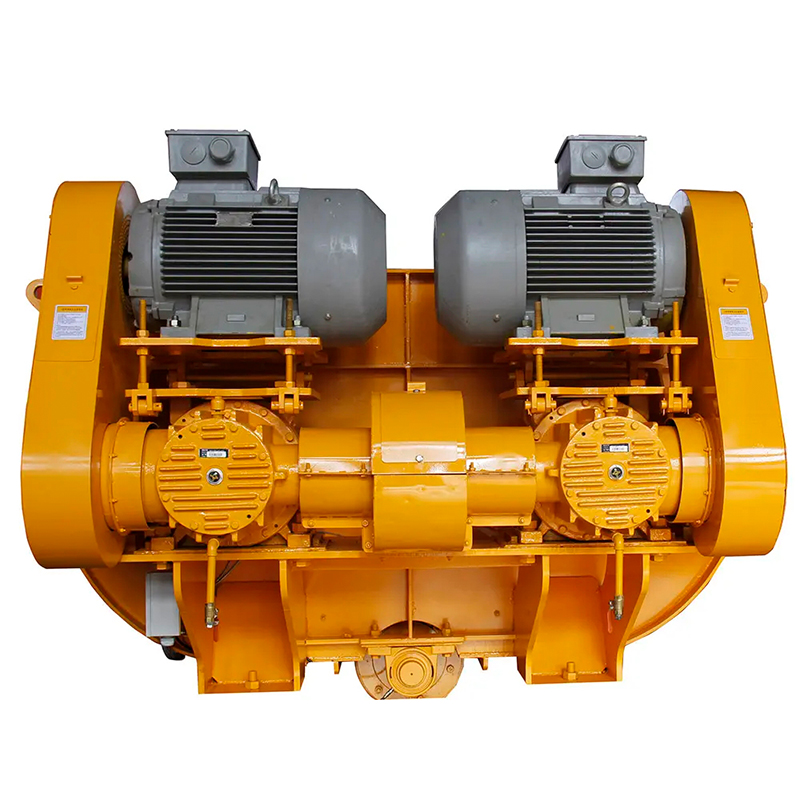

High End Mixer
Product Feature:
1. Improve 20%compared to the other mixer of the same capacity, and the efficiency can be increased to 160 m3 per hour equipped with 120 mixing plant.
2. Imported motor reducing gear can save energy for 15%,and the air-tight seal on shaft end can saving lubricate fee of 20000 yuan RMB per year.
3. The unique pneumatic discharging and air-tight seal on shaft end can avoid oil pollution.
4. JS-series concrete mixer is mainly used for producing various grade concrete, it can produce hard concrete and low plastic concrete.Aggregate could be gravel or pebble. It is mainly used in kinds of concrete production line.
Technical Parameters
| Item Type | SjJS2000-5G | SjJS3000-5G | |
| Discharge capacity（L） | 2000 | 3000 | |
| Charge capacity（L） | 3200 | 4800 | |
| Working period（S） | ≤80 | ≤86 | |
| Max. Aggregate size (mm) | Gravel | 60 | 60 |
| Pebble | 80 | 80 | |
| Total weight（kg） | 7970 | 9565 | |
| Mixing power（kw） | 2X37 | 2X55 | |
