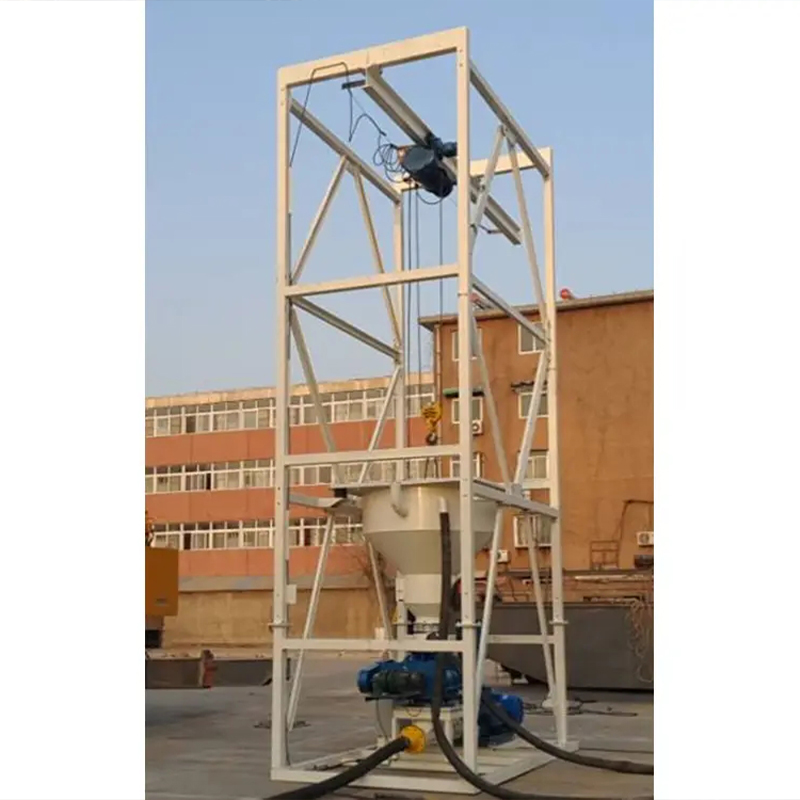

Concrete Bag Breaker
Product Feature:
1.Cement bag breaker is the dedicated unpack device for bagged power.
2.This device has features including environmental protection, easy operation, convenient maintenance and continuous feeding, and it can be used as the supporting device of power storage facilities.
Technical Parameters
| Model |
SjHCB020-D |
SjHCB020-L |
| Roots blower power |
|
30kW |
| Pneumatic conveying power |
|
2.2kW |
| Hoist power |
4.9kW |
4.9kW |
| Vibrating motor power |
0.15kW |
0.15kW |
| Max. Packing bag size |
2000kg |
2000kg |
| Hoist motor model |
3t |
3t |
| Air compressor |
|
1.8kW |
| Total weight |
1500kg |
3990kg |
| Overall dimension(L×W×H)mm: |
5200 mm×2200 mm×6000 mm |
5250 mm×2100 mm×7350 mm |
| Unpacking efficiency (bags/hours) |
10~20(1t bag) |
10~20(1t bag) |
| Total power |
3.55kW |
40kW |
| Model |
SjHCB020-P |
SjHCB020-C |
| Conveyor belt width |
500mm |
500mm |
| Belt conveyor power |
2.2kW |
2.2kW |
| Screening power |
4kW |
4kW |
| Feeding screw machine power |
5.5kW |
5.5kW |
| Screw feed bag machine power |
1.5kW |
1.5kW |
| Unpacking device power |
2×1.1kW |
2×1.1kW |
| Filter power |
1.5kW |
1.5kW |
| Pneumatic conveying system roots blower power |
|
30kW |
| Pneumatic conveying system feeder power |
|
2.2kW |
| Air compressor power |
1.8kW |
1.8kW |
| Total Weight |
3600kg |
3600kg |
| Overall dimension (operative: L x W x H)mm |
9120X1700X3000 |
9000X1700X3820 |
| Max theory Capacity |
Remarks |
Remarks |
| Total power |
19kW |
51kW |
