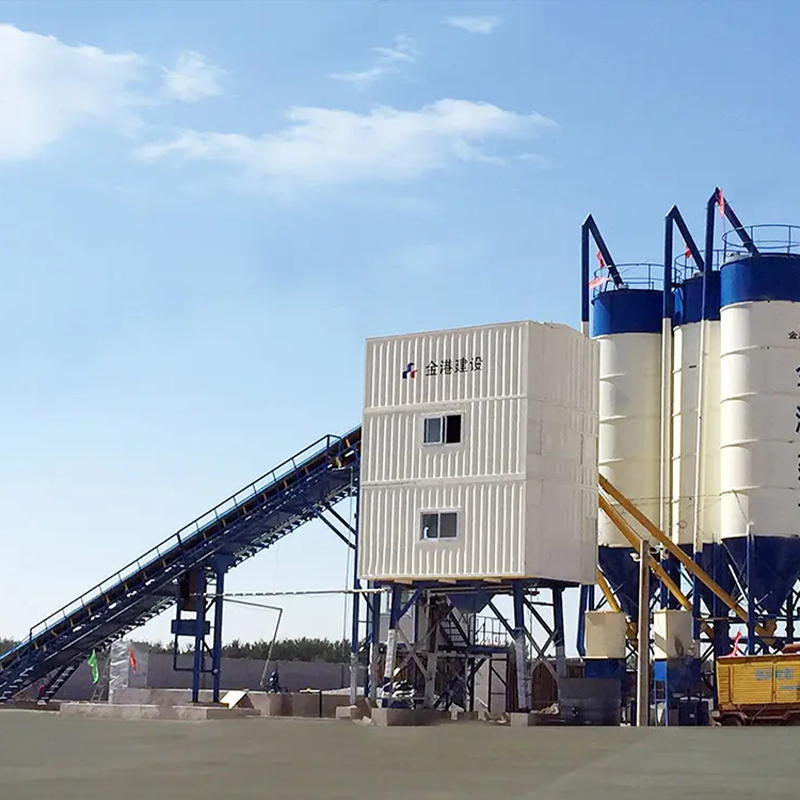

Belt Type Concrete Batching Plant
Features
The plant is composed of batching system, weighing system, mixing system, electrical control system, pneumatic control system and etc. aggregates, powders, liquid additive and water can be automatically scaled and mixed by the plant. Aggregates were loaded to aggregate bin by front loader. Powder is conveyed from silo into weighing scale by screw conveyor .Water and liquid additive are pumped to the scales. All the weighing systems are electronic scales.
The plant is fully automatic controlled by computer with production management and data printing software.
It can mix various kinds of concrete and suitable for medium size construction sites, power stations, irrigation, highways, airfields, bridges, and medium size factories producing concrete prefabricated parts.
1.Modular design, convenient assembly and disassembly, fast transfer, flexible layout.
2.Belt conveyor loading type, stable performance; Equipped with aggregate storage hopper,high productivity.
3.Powder weighing system adopt pull rod balance structure to ensure high measurement accuracy and strong anti-interference ability.
4.Container type cladding, safe and convenient assembly and disassembly, can be reused.
5. The electrical system and gas system are equipped with high-end and high reliability.
Specification
|
Mode |
SjHZS060B |
SjHZS090B |
SjHZS120B |
SjHZS180B |
SjHZS240B |
SjHZS270B |
|||
| Theoretical productivity m³/h | 60 | 90 | 120 | 180 | 240 | 270 | |||
| Mixer | Mode | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | JS4500 | ||
| Driving power（Kw） | 2X18.5 | 2X30 | 2X37 | 2X55 | 2X75 | 2X75 | |||
| Discharging capacity（L） | 1000 | 1500 | 2000 | 3000 | 4000 | 4500 | |||
| Max. aggregate sizeGravel/ Pebble mm） | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |||
| Batching bin | Volume m³ | 3X12 | 3X12 | 4X20 | 4X20 | 4X30 | 4X30 | ||
| Belt conveyor capacity t/h | 200 | 300 | 400 | 600 | 800 | 800 | |||
| Weighing range and measurement accuracy | Aggregate kg | 3X
（1000±2%） |
3X
（1500±2%） |
4X
（2000±2%） |
4X
（3000±2%） |
4X
（4000±2%） |
4X
（4500±2%） |
||
| Cement kg | 500±1% | 800±1% | 1000±1% | 1500±1% | 2000±1% | 2500±1% | |||
| Fly ash kg | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | 900±1% | |||
| Water kg | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | 900±1% | |||
| Additive kg | 20±1% | 30±1% | 40±1% | 60±1% | 80±1% | 90±1% | |||
| Discharging height m | 4 | 4 | 4.2 | 4.2 | 4.2 | 4.2 | |||
| Total power KW | 100 | 150 | 200 | 250 | 300 | 300 | |||
